Raw Materials Processing: --- used to crush a variety of medium hard ores, such as limestone, clinker, coal and other ores.
Raw Materials Processing: --- used to crush a variety of medium hard ores, such as limestone, clinker, coal and other ores.
10-100t/h Capacity:
35-300mm Feeding size:

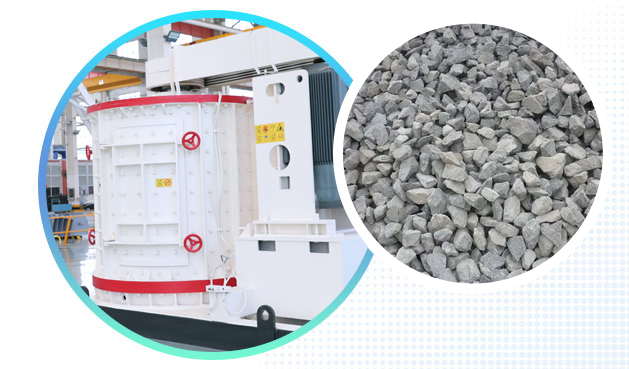

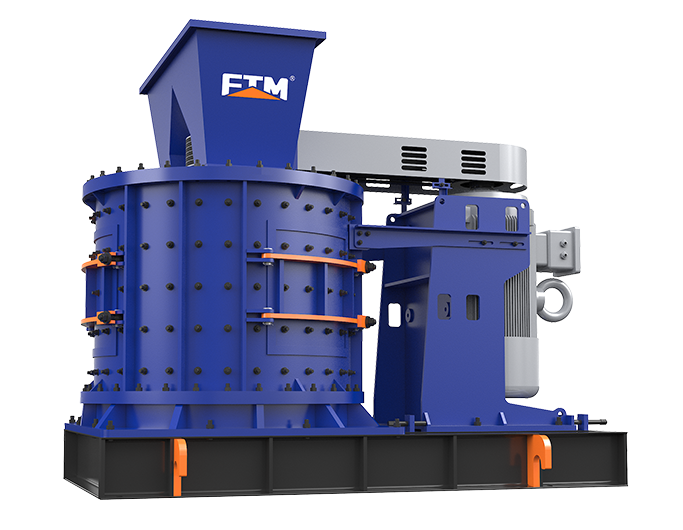

The compound crusher is also named combination crusher, and is one of the commonly used equipment in the crushing production line and the sand making production line. This series of crusher is a new product based on our company's PEL vertical compound crusher and optimized with domestic and foreign fine crushing technology. Its performance has reached the domestic advanced level. It is mainly for all kinds of ore with compressive strength not exceeding 200MPa and water content less than 15%.
Simple structure, low cost of operation, and more energy saving.
It is basically unaffected by the moisture content of the material and can handle materials with a water content of up to 8%.
Working noise is less than 75 decibels (db level) and there is less dust pollution.
The main features of the compound crusher are large crushing ratio and high output, which is 1.4 times higher than domestic similar products. The wearing parts are made of high hardness, high toughness and multi-alloy wear-resistant material, and the service lifespan is improved by 2-3 times. What’s more, the gap between the hammer head and the counterattack plate is adjustable to meet a variety of material conditions. The feed size of the machine is less than 100 mm. The compound crusher has a maximum production capacity of 100t/h.
| Specification | Capacity(t/h) | Power(kw) |
| 800 | 5-15 | 4P 30 |
| 1000 | 10-30 | 4P 55 |
| 1250 | 17-60 | 6P 132 |
| 1500 | 25-80 | 8P 160 |
| 1750 | 30-100 | 8P 200 |
