Raw Materials Processing: --- concrete scrap, iron ore, copper ore, gold ore, manganese ore, gravel, granite, river stone, basalt, limestone, dolomite, quartz and coal.
Raw Materials Processing: --- concrete scrap, iron ore, copper ore, gold ore, manganese ore, gravel, granite, river stone, basalt, limestone, dolomite, quartz and coal.
60-660mm Feeding size:
50–650 t/h Capacity:

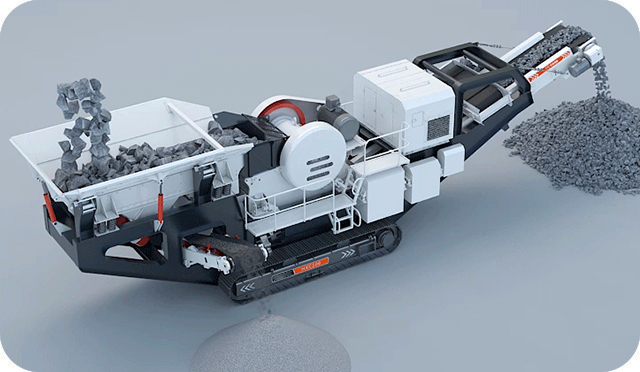

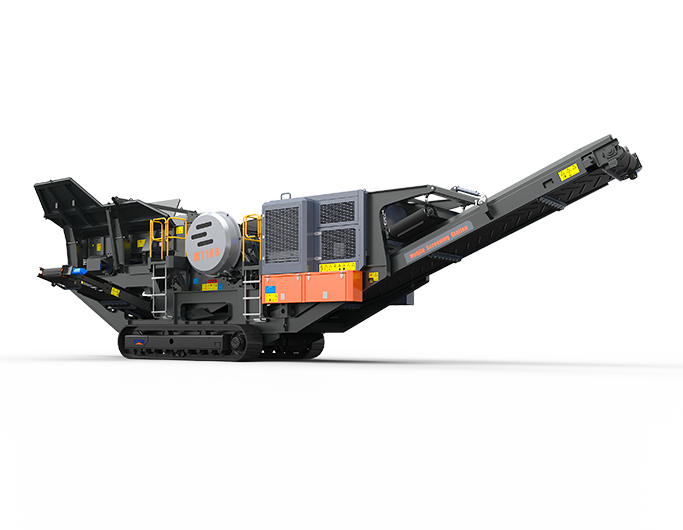

Crawler mobile crusher is a type of mobile equipment used for crushing and screening various stones and construction debris. It features a crawler chassis that enables free movement on different terrains and is equipped with a crusher and a screening mechanism. Crawler mobile crushers are commonly used in mines, quarries, construction sites, and waste treatment plants. They can crush and screen raw large stones or waste materials to produce the desired fine particles or specific sizes of stones.

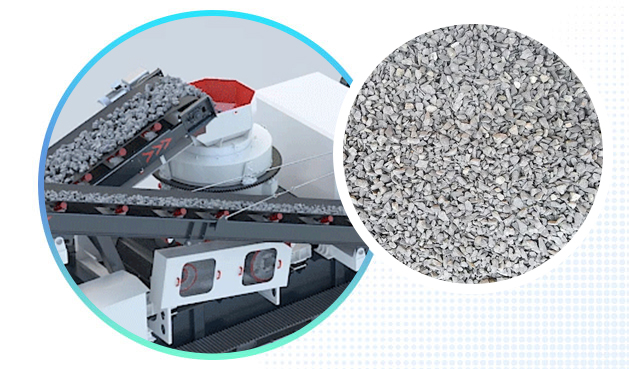

The crusher is one of the main components of a crawler mobile crusher and is used to crush raw materials into the required sizes. Common types of crushers include jaw crushers, impact crushers, and cone crushers, among others. The selection of the crusher depends on the hardness of the raw material and the desired final product size. The screening mechanism is used to separate the crushed materials into different particle sizes. It helps classify particles of different sizes, enabling the separation of products that meet the requirements and further processing or exclusion of particles that are too large or too small.
| Model | WT96 | WT106 | WT120 | |
| Dimensions of Transmission Devices | Length | 14200mm | 14900mm | 15200mm |
| Width | 2900mm | 3000mm | 3200mm | |
| Height | 3470mm | 3600mm | 3700mm | |
| Weight | 38t | 50t | 65t | |
| Feeder | Hopper Volume | 5m³ | 5m³ | 6m³ |
| Loading Height | 3900mm | 4100mm | 4300mm | |
| FeederModel | GZDT3895 | GZDT1145 | GZDT1245 | |
| Unearthed Belt Conveyors | Dimensions (Width×Length) |
800×9000mm | 1000×10000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | 3400mm | |
| Crusher | Model | CJ96 | CJ106 | CJ120 |
| Inlet Dimensions | 930×580mm | 1060×700mm | 1200×870mm | |
| Max.Feeding Size | 480mm | 560mm | 700mm | |
| Main Belt Conveyor | Dimensions (Width×Length) |
800×9000mm | 1000×10000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | 3400mm | |
| Iron Remover | Model | RCYQ-8 | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 106kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 112.9kw | 141.4kw | 196.2kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT96 and WT106
| Model | WT96 | WT106 | |
| Dimensions of Transmission Devices | Length | 14200mm | 15200mm |
| Width | 2900mm | 3000mm | |
| Height | 3470mm | 3600mm | |
| Weight | 38t | 50t | |
| Feeder | Hopper Volume | 5m³ | 6m³ |
| Loading Height | 3900mm | 4100mm | |
| FeederModel | GZDT3895 | GZDT1145 | |
| Unearthed Belt Conveyors | Dimensions (Width×Length) |
800×9000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | |
| Crusher | Model | CJ96 | CJ120 |
| Inlet Dimensions | 930×580mm | 1060×700mm | |
| Max.Feeding Size | 480mm | 560mm | |
| Main Belt Conveyor | Dimensions (Width×Length) |
800×9000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | |
| Iron Remover | Model | RCYQ-8 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 112.9kw | 196.2kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT120
| Model | WT120 | |
| Dimensions of Transmission Devices | Length | 15200mm |
| Width | 3200mm | |
| Height | 3700mm | |
| Weight | 65t | |
| Feeder | Hopper Volume | 6m³ |
| Loading Height | 4300mm | |
| FeederModel | GZDT1245 | |
| Unearthed Belt Conveyors | Dimensions (Width×Length) |
1200×12000mm |
| Dumping Height | 3400mm | |
| Crusher | Model | CJ120 |
| Inlet Dimensions | 1200×870mm | |
| Max.Feeding Size | 700mm | |
| Main Belt Conveyor | Dimensions (Width×Length) |
1200×12000mm |
| Dumping Height | 3400mm | |
| Iron Remover | Model | RCYQ-10 |
| Diesel Engine | Power | 132kw |
| Manufacturer | Carter Perkins | |
| The Main Machine | Power | 196.2kw |
| Ways of Controlling | Wired/Wireless (optional) | |
| Model | WT110 | WT110S | WT1213 | WT1213S | WT1315 | |
| Dimensions of Transmission Devices | Length | 14000mm | 16000mm | 15500mm | 19000mm | 17000mm |
| Width | 3000mm | 3200mm | 3200mm | 3600mm | 3200mm | |
| Height | 3600mm | 3600mm | 3800mm | 3800mm | 3800mm | |
| Weight | 40t | 45t | 53t | 60t | 65t | |
| Feeder | Hopper Volume | 3m³ | 3m³ | 5m³ | 5m³ | 5m³ |
| Loading Height | 3900mm | 4000mm | 3900mm | 4100mm | 4000mm | |
| Primary Screen | Power | 5.2kw | 5.2kw | 6.12kw | 6.12kw | 6.12kw |
| Sieve Dimensions | 1040×924mm | 1040×924mm | 1140×924mm | 1140×924mm | 1240×930mm | |
| Crusher | Model | CI1110M | CI1110M | CI1213M | CI1213M | CI1315M |
| Inlet Dimensions | 1020×860mm | 1020×860mm | 1320×900mm | 1320×900mm | 1540×900mm | |
| Max.Feeding Size | 400mm | 400mm | 500mm | 500mm | 600mm | |
| The Feeder at the Bottom | Hopper Volume | 0.8m³ | 0.8m³ | 1m³ | 1m³ | 1.5m³ |
| Power | 5.2kw | 5.2kw | 5.2kw | 5.2kw | 6.12kw | |
| Unearthed Belt Conveyors | Dimensions (Width×Length) |
650×3500mm | 650×3500mm | 650×3500mm | 650×3500mm | 650×3500mm |
| Dumping Height | 2200mm | 2200mm | 2200mm | 2200mm | 2400mm | |
| Main Belt Conveyor | Dimensions (Width×Length) |
1000×8500mm | 1000×8500mm | 1000×9900mm | 1000×9900mm | 1200×11000mm |
| Dumping Height | 3300mm | 3300mm | 3500mm | 3500mm | 3800mm | |
| Secondary Screen | Power | ○ | 6.12kw | ○ | 6.12kw | ○ |
| Sieve Dimensions | ○ | 1500×3600 | ○ | 1500×4200 | ○ | |
| Belt Conveyors at the Bottom | Dimensions (Width×Length) |
○ | 1000×5800mm | ○ | 1000×6200mm | ○ |
| Dumping Height | ○ | 2900mm | ○ | 3000mm | ○ | |
| Transferring Belt Conveyor | Dimensions (Width×Length) |
○ | 650×2500mm | ○ | 650×2800mm | ○ |
| Dumping Height | ○ | 1400mm | ○ | 1400mm | ○ | |
| Belt Conveyors for Discharging Material | Dimensions (Width×Length) |
○ | 500×8000mm | ○ | 500×9200mm | ○ |
| Dumping Height | ○ | 4200mm | ○ | 4500mm | ○ | |
| Iron Remover | Model | RCYQ-10 | RCYQ-10 | RCYQ-10 | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 106kw | 106kw | 132kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 253kw | 274kw | 304kw | 324.4kw | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT110 and WT110S
| Model | WT110 | WT110S | |
| Dimensions of Transmission Devices | Length | 14000mm | 17000mm |
| Width | 3000mm | 3200mm | |
| Height | 3600mm | 3600mm | |
| Weight | 40t | 45t | |
| Feeder | Hopper Volume | 3m³ | 5m³ |
| Loading Height | 3900mm | 4000mm | |
| Primary Screen | Power | 5.2kw | 6.12kw |
| Sieve Dimensions | 1040×924mm | 1040×924mm | |
| Crusher | Model | CI1110M | CI1315M |
| Inlet Dimensions | 1020×860mm | 1020×860mm | |
| Max.Feeding Size | 400mm | 400mm | |
| The Feeder at the Bottom | Hopper Volume | 0.8m³ | 1.5m³ |
| Power | 5.2kw | 5.2kw | |
| Unearthed Belt Conveyors | Dimensions (Width×Length) |
650×3500mm | 650×3500mm |
| Dumping Height | 2200mm | 2200mm | |
| Main Belt Conveyor | Dimensions (Width×Length) |
1000×8500mm | 1200×11000mm |
| Dumping Height | 3300mm | 3300mm | |
| Secondary Screen | Power | ○ | ○ |
| Sieve Dimensions | ○ | 1500×3600 | |
| Belt Conveyors at the Bottom | Dimensions (Width×Length) |
○ | ○ |
| Dumping Height | ○ | 2900mm | |
| Transferring Belt Conveyor | Dimensions (Width×Length) |
○ | ○ |
| Dumping Height | ○ | 1400mm | |
| Belt Conveyors for Discharging Material | Dimensions (Width×Length) |
○ | ○ |
| Dumping Height | ○ | 4200mm | |
| Iron Remover | Model | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 253kw | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT1213 and WT1213S
| Model | WT1213 | WT1213S | |
| Dimensions of Transmission Devices | Length | 15500mm | 17000mm |
| Width | 3200mm | 3600mm | |
| Height | 3800mm | 3800mm | |
| Weight | 53t | 60t | |
| Feeder | Hopper Volume | 5m³ | 5m³ |
| Loading Height | 3900mm | 4100mm | |
| Primary Screen | Power | 6.12kw | 6.12kw |
| Sieve Dimensions | 1140×924mm | 1140×924mm | |
| Crusher | Model | CI1213M | CI1315M |
| Inlet Dimensions | 1320×900mm | 1320×900mm | |
| Max.Feeding Size | 500mm | 500mm | |
| The Feeder at the Bottom | Hopper Volume | 1m³ | 1.5m³ |
| Power | 5.2kw | 5.2kw | |
| Unearthed Belt Conveyors | Dimensions (Width×Length) |
650×3500mm | 650×3500mm |
| Dumping Height | 2200mm | 2200mm | |
| Main Belt Conveyor | Dimensions (Width×Length) |
1000×9900mm | 1200×11000mm |
| Dumping Height | 3500mm | 3500mm | |
| Secondary Screen | Power | ○ | ○ |
| Sieve Dimensions | ○ | 1500×4200 | |
| Belt Conveyors at the Bottom | Dimensions (Width×Length) |
○ | ○ |
| Dumping Height | ○ | 3000mm | |
| Transferring Belt Conveyor | Dimensions (Width×Length) |
○ | ○ |
| Dumping Height | ○ | 1400mm | |
| Belt Conveyors for Discharging Material | Dimensions (Width×Length) |
○ | ○ |
| Dumping Height | ○ | 4500mm | |
| Iron Remover | Model | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 106kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 304kw | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT1315
| Model | WT1315 | |
| Dimensions of Transmission Devices | Length | 17000mm |
| Width | 3200mm | |
| Height | 3800mm | |
| Weight | 65t | |
| Feeder | Hopper Volume | 5m³ |
| Loading Height | 4000mm | |
| Primary Screen | Power | 6.12kw |
| Sieve Dimensions | 1240×930mm | |
| Crusher | Model | CI1315M |
| Inlet Dimensions | 1540×900mm | |
| Max.Feeding Size | 600mm | |
| The Feeder at the Bottom | Hopper Volume | 1.5m³ |
| Power | 6.12kw | |
| Unearthed Belt Conveyors | Dimensions (Width×Length) |
650×3500mm |
| Dumping Height | 2400mm | |
| Main Belt Conveyor | Dimensions (Width×Length) |
1200×11000mm |
| Dumping Height | 3800mm | |
| Secondary Screen | Power | ○ |
| Sieve Dimensions | ○ | |
| Belt Conveyors at the Bottom | Dimensions (Width×Length) |
○ |
| Dumping Height | ○ | |
| Transferring Belt Conveyor | Dimensions (Width×Length) |
○ |
| Dumping Height | ○ | |
| Belt Conveyors for Discharging Material | Dimensions (Width×Length) |
○ |
| Dumping Height | ○ | |
| Iron Remover | Model | RCYQ-10 |
| Diesel Engine | Power | 132kw |
| Manufacturer | Carter Perkins | |
| The Main Machine | Power | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | |
| Model | WT160SC | WT250SC | WT300HPM | WT400HPM | |
| Dimensions of Transmission Devices | Length | 16800mm | 19000mm | 19000mm | 19500mm |
| Width | 3500mm | 3600mm | 3900mm | 3900mm | |
| Height | 3700mm | 3800mm | 3800mm | 3800mm | |
| Weight | 50t | 60t | 55t | 65t | |
| Belt Conveyor | Hopper Volume | 3m³ | 3m³ | 3m³ | 3m³ |
| Loading Height | 2600m | 2600m | 2600m | 2800m | |
| Loading Width | 1900mm | 1900mm | 1900mm | 1900mm | |
| Dimensions (Width×Length) |
1000×6300mm | 1000×6300mm | 1000×6300mm | 1200×6500mm | |
| Crusher | Model | SC160 | SC250 | HP300 | HP400 |
| Inlet Dimensions | 75-360mm | 75-450mm | 60-200mm | 68-280mm | |
| Max.Feeding Size | 360mm | 450mm | 200mm | 280mm | |
| Min. Discharging Size | 8-25mm | 8-35mm | 8-45mm | 8-51mm | |
| Main Belt Conveyor | Dimensions (Width×Length) |
1000×9000mm | 1000×10000mm | 1000×10000mm | 1000×11000mm |
| Dumping Height | 3100mm | 3490mm | 3490mm | 3690mm | |
| Secondary Screen | Dumping Height | 4200mm | 4200mm | 4400mm | 4400mm |
| Model | HX1536 | HX1536 | HX1536 | HX1536 | |
| Sieve Dimensions | 1500×3600mm | 1500×3600mm | 1500×3600mm | 1500×3600mm | |
| Belt Conveyors at the Bottom | Dimensions (Width×Length) |
1000×5600mm | 1000×5600mm | 1000×5600mm | 1000×6500mm |
| Dumping Height | 3020mm | 3020mm | 3020mm | 3300mm | |
| Belt Conveyors to the Sieve | Dimensions (Width×Length) |
650×2100mm | 650×2100mm | 650×2100mm | 650×2100mm |
| Dumping Height | 1370mm | 1370mm | 1370mm | 1370mm | |
| Belt Conveyors for Discharging Material | Dimensions (Width×Length) |
650×10000mm | 650×10000mm | 650×11000mm | 650×11000mm |
| Dumping Height | 4200mm | 4200mm | 4400mm | 4400mm | |
| Diesel Engine | Power | 96kw | 132kw | 106kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 207.12kw | 297.12kw | 267.12kw | 362.12kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT160SC and WT250SC
| Model | WT160SC | WT250SC | |
| Dimensions of Transmission Devices | Length | 16800mm | 19500mm |
| Width | 3500mm | 3600mm | |
| Height | 3700mm | 3800mm | |
| Weight | 50t | 60t | |
| Belt Conveyor | Hopper Volume | 3m³ | 3m³ |
| Loading Height | 2600m | 2600m | |
| Loading Width | 1900mm | 1900mm | |
| Dimensions (Width×Length) |
1000×6300mm | 1000×6300mm | |
| Crusher | Model | SC160 | HP400 |
| Inlet Dimensions | 75-360mm | 75-450mm | |
| Max.Feeding Size | 360mm | 450mm | |
| Min. Discharging Size | 8-25mm | 8-35mm | |
| Main Belt Conveyor | Dimensions (Width×Length) |
1000×9000mm | 1000×11000mm |
| Dumping Height | 3100mm | 3490mm | |
| Secondary Screen | Dumping Height | 4200mm | 4400mm |
| Model | HX1536 | HX1536 | |
| Sieve Dimensions | 1500×3600mm | 1500×3600mm | |
| Belt Conveyors at the Bottom | Dimensions (Width×Length) |
1000×5600mm | 1000×6500mm |
| Dumping Height | 3020mm | 3020mm | |
| Belt Conveyors to the Sieve | Dimensions (Width×Length) |
650×2100mm | 650×2100mm |
| Dumping Height | 1370mm | 1370mm | |
| Belt Conveyors for Discharging Material | Dimensions (Width×Length) |
650×10000mm | 650×10000mm |
| Dumping Height | 4200mm | 4200mm | |
| Diesel Engine | Power | 96kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 207.12kw | 362.12kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT300HPM and WT400HPM
| Model | WT300HPM | WT400HPM | |
| Dimensions of Transmission Devices | Length | 19000mm | 19500mm |
| Width | 3900mm | 3900mm | |
| Height | 3800mm | 3800mm | |
| Weight | 55t | 65t | |
| Belt Conveyor | Hopper Volume | 3m³ | 3m³ |
| Loading Height | 2600m | 2800m | |
| Loading Width | 1900mm | 1900mm | |
| Dimensions (Width×Length) |
1000×6300mm | 1200×6500mm | |
| Crusher | Model | HP300 | HP400 |
| Inlet Dimensions | 60-200mm | 68-280mm | |
| Max.Feeding Size | 200mm | 280mm | |
| Min. Discharging Size | 8-45mm | 8-51mm | |
| Main Belt Conveyor | Dimensions (Width×Length) |
1000×10000mm | 1000×11000mm |
| Dumping Height | 3490mm | 3690mm | |
| Secondary Screen | Dumping Height | 4400mm | 4400mm |
| Model | HX1536 | HX1536 | |
| Sieve Dimensions | 1500×3600mm | 1500×3600mm | |
| Belt Conveyors at the Bottom | Dimensions (Width×Length) |
1000×5600mm | 1000×6500mm |
| Dumping Height | 3020mm | 3300mm | |
| Belt Conveyors to the Sieve | Dimensions (Width×Length) |
650×2100mm | 650×2100mm |
| Dumping Height | 1370mm | 1370mm | |
| Belt Conveyors for Discharging Material | Dimensions (Width×Length) |
650×11000mm | 650×11000mm |
| Dumping Height | 4400mm | 4400mm | |
| Diesel Engine | Power | 106kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 267.12kw | 362.12kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
| Model | ST673 | ST993 | ST1303 | |
| Dimensions of Transmission Devices |
Length | 11000mm | 12500mm | 12500mm |
| Width | 3800mm | 4000mm | 4000mm | |
| Height | 3800mm | 3900mm | 3900mm | |
| Weight | 28t | 33t | 38t | |
| Feeding Belt Conveyor | Dimensions (Width×Length) |
1000×10000mm | 1000×10000mm | 1000×13000mm |
| Loading Height | 2560mm | 2680mm | 2700mm | |
| Vibrating Screen | Model | 3HX1545 | 3HX1855 | 3HX2160 |
| Sieving Layers | 3 | 3 | 3 | |
| Belt Conveyor | Dimensions (Width×Length) |
1000×7400mm | 1000×7500mm | 1000×7500mm |
| Discharging Height | 3380mm | 3460mm | 3460mm | |
| Belt Conveyor for Coarse Material |
Dimensions (Width×Length) |
500×5600mm | 650×5800mm | 650×5800mm |
| Discharging Height | 3430mm | 3570mm | 3570mm | |
| Belt Conveyor for Medium-Sized Material |
Dimensions (Width×Length) |
500×5300mm | 650×5400mm | 650×5400mm |
| Discharging Height | 3150mm | 3250mm | 3250mm | |
| Belt Conveyor for Fine Material |
Dimensions (Width×Length) |
500×5600mm | 650×5800mm | 650×5800mm |
| Discharging Height | 3030mm | 3080mm | 3080mm | |
| Transferring Belt Conveyors | Dimensions (Width×Length) |
500×2000mm | 650×2000mm | 650×2000mm |
| Discharging Height | 2130mm | 2130mm | 2130mm | |
| Diesel Engine | Power | 75kw | 75kw | 96kw |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 54kw | 57.5kw | 65.5kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model ST673 and ST993
| Model | ST673 | ST993 | |
| Dimensions of Transmission Devices |
Length | 11000mm | 12500mm |
| Width | 3800mm | 4000mm | |
| Height | 3800mm | 3900mm | |
| Weight | 28t | 33t | |
| Feeding Belt Conveyor | Dimensions (Width×Length) |
1000×10000mm | 1000×13000mm |
| Loading Height | 2560mm | 2680mm | |
| Vibrating Screen | Model | 3HX1545 | 3HX2160 |
| Sieving Layers | 3 | 3 | |
| Belt Conveyor | Dimensions (Width×Length) |
1000×7400mm | 1000×7500mm |
| Discharging Height | 3380mm | 3460mm | |
| Belt Conveyor for Coarse Material |
Dimensions (Width×Length) |
500×5600mm | 650×5800mm |
| Discharging Height | 3430mm | 3570mm | |
| Belt Conveyor for Medium-Sized Material |
Dimensions (Width×Length) |
500×5300mm | 650×5400mm |
| Discharging Height | 3150mm | 3250mm | |
| Belt Conveyor for Fine Material |
Dimensions (Width×Length) |
500×5600mm | 650×5800mm |
| Discharging Height | 3030mm | 3080mm | |
| Transferring Belt Conveyors | Dimensions (Width×Length) |
500×2000mm | 650×2000mm |
| Discharging Height | 2130mm | 2130mm | |
| Diesel Engine | Power | 75kw | 96kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 54kw | 65.5kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model ST1303
| Model | ST1303 | |
| Dimensions of Transmission Devices |
Length | 12500mm |
| Width | 4000mm | |
| Height | 3900mm | |
| Weight | 38t | |
| Feeding Belt Conveyor | Dimensions (Width×Length) |
1000×13000mm |
| Loading Height | 2700mm | |
| Vibrating Screen | Model | 3HX2160 |
| Sieving Layers | 3 | |
| Belt Conveyor | Dimensions (Width×Length) |
1000×7500mm |
| Discharging Height | 3460mm | |
| Belt Conveyor for Coarse Material |
Dimensions (Width×Length) |
650×5800mm |
| Discharging Height | 3570mm | |
| Belt Conveyor for Medium-Sized Material |
Dimensions (Width×Length) |
650×5400mm |
| Discharging Height | 3250mm | |
| Belt Conveyor for Fine Material |
Dimensions (Width×Length) |
650×5800mm |
| Discharging Height | 3080mm | |
| Transferring Belt Conveyors | Dimensions (Width×Length) |
650×2000mm |
| Discharging Height | 2130mm | |
| Diesel Engine | Power | 96kw |
| Manufacturer | Carter Perkins | |
| The Main Machine | Power | 65.5kw |
| Ways of Controlling | Wired/Wireless (optional) | |
