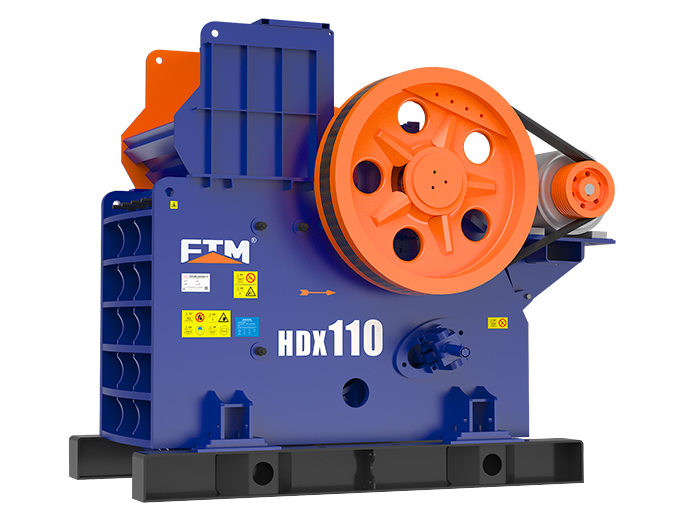

Gold Ore Crusher

Applied material: --- gold ore, gold stones, gold rocks, gold quartz, etc.

Applied fields: --- Used in mining, quarry, chemical, etc.

Are you interested in our machines?

Chat Online Free Quotation

10-50t/h Production Capacity:

≤210mm Input Size:

Brief Introduction

Gold Ore Crusher, also refer to gold stone crusher or gold rock crusher, is used to process gold stone, gold rock, gold ores in gold mining industry. It can be used for primary and fine crushing of the materials.

It is widely used for primary secondary fine crushing of gold ore, gold stones, gold rocks, gold quartz, etc. Adjustable final size meeting different needs. Following is common final output size.

Working Principle

The motor drives the belt and pulley, and the movable jaw moves up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, thereby pushing the movable jaw approaches the fixed jaw, and at the same time, the material is crushed to achieve the purpose of crushing; when the movable jaw descends, the angle between the toggle and the movable jaw becomes smaller. Under the role of pull rod and the spring, the movable jaw leaves the fixed jaw, the crushed materials are discharged from the lower mouth of the crushing cavity. With the continuous rotation of motor and the periodic motion of movable jaw, realizing mass production.

Technical Parameter

Model	Feed opening size(mm）	Max.Feeding size (mm)	Adjustment range of discharge port (mm)	Capacity(t/h)	Rotation speed of eccentric shaft(r/min)	Power (kw)	Dimensions（L×W×H） (mm)
PE 150×250	150×250	125	10-40	1-3	268	4P 5.5	760×700×860
PE 200×300	200×300	180	15-50	2-6	260	4P 7.5	915×780×990
PE 200×350	200×350	180	18-60	3-10	276	4P 11	1000×914×1112
PE 250×400	250×400	210	20-70	5-21	300	6P 15	1100×1032×1285
PE 400×600	400×600	340	40-100	16-64	270	6P 30	1623×1736×1615
PE 500×750	500×750	425	50-100	40-110	268	6P 55	1920×1850×1920
PE 600×750	600×750	500	150-200	80-240	268	6P 55	2020×1850×1920
PE 600×900	600×900	500	65-160	50-160	254	6P 55	2530×1900×2340
PE 750×1060	750×1060	630	80-180	110-320	245	8P 110	2680×2380×2785
PE 900×1200	900×1200	750	100-200	220-380	208	8P 110	3470×2876×3330
PE1200×1500	1200×1500	1020	150-350	400-1000	180	8P 160-245	4850×3220×3680
PE1500×1800	1500×1800	1200	220-350	500-1200	180	8P 280-380	5160×3660×4248
PEX 150×750	150×750	120	18-48	8-25	320	4P 15	1170×1575×1030
PEX 250×750	250×750	210	25-60	13-35	320	6P 22	1550×1730×1470
PEX 250×1000	250×1000	210	25-60	16-52	330	6P 30	1580×2006×1390
PEX 250×1200	250×1200	210	25-60	20-61	330	6P 37	1780×2214×1430
PEX 300×1300	300×1300	250	20-90	16-105	300	6P 55	2210×2320×1723

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Max.Feeding size (mm)	Capacity (t/h)
PE 150×250	125	1-3
PE 200×300	180	2-6
PE 200×350	180	3-10
PE 250×400	210	5-21
PE 400×600	340	16-64
PE 500×750	425	40-110
PE 600×750	500	80-240
PE 600×900	500	50-160
PE 750×1060	630	110-320
PE 900×1200	750	220-380
PE 1200×1500	1020	400-1000
PE 1500×1800	1200	500-1200
PEX 150×750	120	8-25
PEX 250×750	210	13-35
PEX 250×1000	210	16-52
PEX 250×1200	210	20-61
PEX 300×1300	250	16-105
