Raw Materials Processing: --- For hard materials such as granite, basalt, limestone, quartz, concrete, aggregate, iron ore, gold ore, etc.
Raw Materials Processing: --- For hard materials such as granite, basalt, limestone, quartz, concrete, aggregate, iron ore, gold ore, etc.
40-910t/h Capacity:
460×720-1100×1450mm Feed opening:

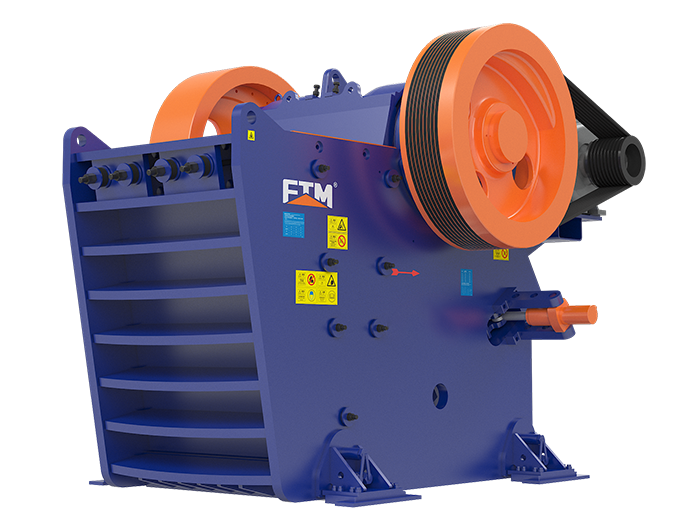

The jaw crusher is usually used as a primary crusher in the production line. Its performance plays an important role in the running of complete crushing line. With more than 30 years of experience in the crushing industry, engineers in Henan Fote Heavy Machinery Co., Ltd. have developed HD German Jaw Crusher together with German engineers. It makes a significant breakthrough of capacity and quality improving in the crushing production line.
With large bearing and forging spindle, they can carry more crushing power.
Low suspension motion mechanism leads to greater crushing ratio.
It features a high wear-resistant tooth plate for longer maintenance intervals and saving cost.
Reliable performance; Optimized design; Low fault rate.The company is strong.
With the perfect optimization of crushing cavity and working parameters, HD German Jaw Crusher stands out in terms of a higher capacity and superior product quality, and wider availability as well. It can be used in various industries, such as metal and non-metallic ores, construction, sand and stone crushing, cement and metallurgy, especially doing well in crushing hard materials. The HD German Jaw Crusher has a maximum production capacity of 750t/h.
| Model | Feeding opening size(mm) | Max.Feeding size （mm） | Adjustment range of discharge port（mm） | Capacity(t/h) | Power(kw) | Dimensions L×W×H （mm） |
| HD72(57) | 460×720 | 425 | 45-100 | 50-120 | 6P 55 | 2100×1556×1640 |
| HD86(69) | 580×860 | 500 | 50-150 | 60-280 | 8P 75 | 2200×1754×1810 |
| HD98(751) | 680×980 | 630 | 75-175 | 110-410 | 8P 110 | 2660×1960×2175 |
| HD110(912) | 850×1100 | 750 | 100-200 | 170-550 | 6P 132 | 2960×2381×2556 |
| HD125 | 950×1250 | 900 | 125-225 | 280-750 | 8P 160 | 3500×2614×2925 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding opening size(mm) | Max.Feeding size（mm） | Capacity (t/h) |
| HD72(57) | 460×720 | 425 | 50-120 |
| HD86(69) | 580×860 | 500 | 60-280 |
| HD98(751) | 680×980 | 630 | 110-410 |
| HD110(912) | 850×1100 | 750 | 170-550 |
| HD125 | 950×1250 | 900 | 280-750 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
