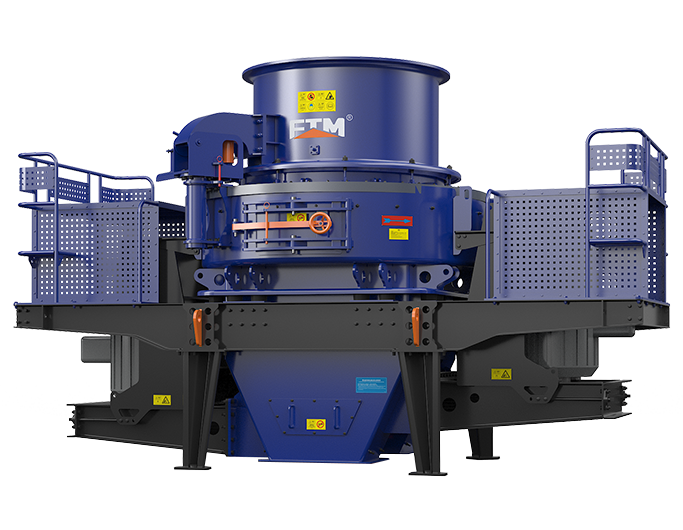

HVI Sand Making Machine

Raw Materials Processing: --- Metal and non-metal ore, building materials, artificial sand and various metallurgical slag crushing and shaping. All kinds of high-hardness ores (such as granite, talc, potassium feldspar, quartz stone, etc.) and construction waste, hollow bricks, etc.

Are you interested in our machines?

Chat Online Free Quotation

70–585 t/h Capacity:

200–530 r/min Rotate speed:

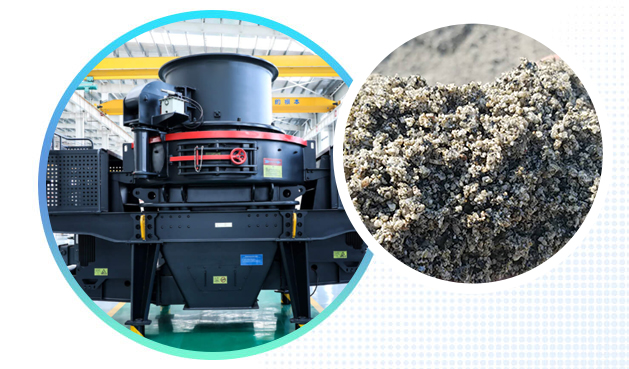

Brief Introduction

HVI impact sand maker, also known as HVI impact sand making and shaping machine, FTM company introduces German advanced technology, integrates various crushing modes, and innovates and develops the new 2018 equipment. It is new high-efficiency sand making and shaping equipment with many patented technologies.

Advantages

1.The upper and lower adjustable perimeter guards are used to make the equipment work under the perimeter of the equipment during the operation, which improves the utilization rate and prolongs the service life.
2.Combined throwing head, only need to replace the worn part, can reduce the cost of use by 30%.
Lubrication method can be selected; the modular design of thin oil type and grease type of bearing chamber can realize the whole interchangeability.
There are multiple ways of feeding from the center and the surrounding. The startup and operation of the equipment are on the automation control panel, which enhances production safety.

Working Principle

The impeller structure adopts a unique deep cavity four-port design to increase material throughput by more than 30% and special bulk tray design to convert quickly feeding and waterfall feeding, effectively reducing downtime, adjustment time, and improving work efficiency. The final products have cube form and the shaping effect is good, the iron pollution is extremely small, and the size of the grain can be adjusted according to actual needs.

Service Guarantee

Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
Expert design as your order and requirement, with all-around solutions to your problems.
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
Regular inspection and return visit, and solve your after-sale problems in time.

Technical Parameter

Model	Hard material	Soft material	Sand Shaping	Sand Making	Motor Power（kw）
Model	Max.Feeding Size （mm）		Throughput（t/h）		Motor Power（kw）
HVI 0815	<30	<35	50-140	90-230	2×75
HVI 0818	<30	<35	60-190	110-283	2×90
HVI 0922	<35	<40	70-210	150-330	2×110
HVI 0926	<35	<40	85-240	170-380	2×132
HVI 1032	<40	<45	130-278	180-400	2×160
HVI 1040	<40	<45	180-284	250-440	2×200
HVI 1263	<50	<55	320-498	370-585	2×315

Model	Sand Shaping	Sand Making	Motor Power （kw）
Model	Max.Feeding Size （mm）		Motor Power （kw）
HVI 0815	50-140	90-230	2×75
HVI 0818	60-190	110-283	2×90
HVI 0922	70-210	150-330	2×110
HVI 0926	85-240	170-380	2×132
HVI 1032	130-278	180-400	2×160
HVI 1040	180-284	250-440	2×200
HVI 1263	320-498	370-585	2×315
