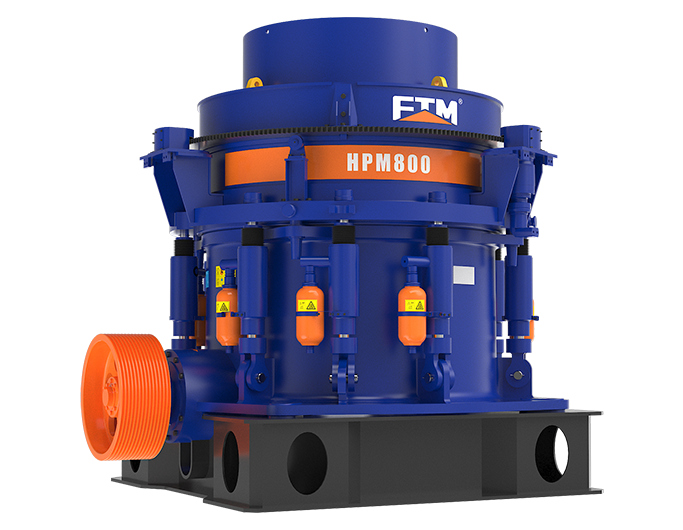

Hydraulic Cone Crusher

Raw Materials Processing: --- For granite, quarry stones, rocks, aggregate, basalt, limestone, gold ore, iron ore, etc.

Are you interested in our machines?

Chat Online Free Quotation

36-650t/h Capacity:

35-228mm Feeding size:

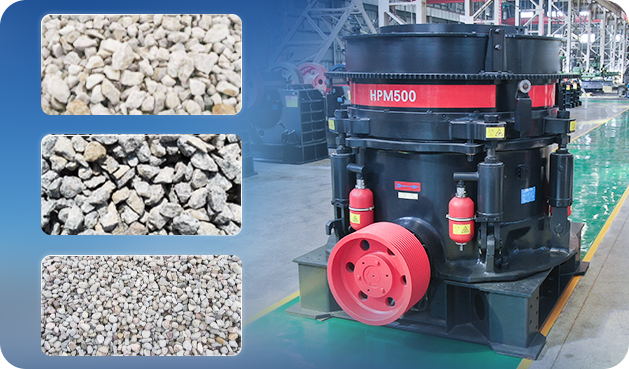

Brief Introduction

The hydraulic cone crusher is widely used in mining, building materials, metallurgy and other industries. It is an important crushing equipment that can meet the crushing needs of different engineering projects. A hydraulic cone crusher is an equipment used to crush rocks, ores and other materials. It is a type of cone crusher, using a hydraulic control system, with efficient and stable crushing capacity.

Advantages

1.Automatic control of overload protection and cleaning chamber function by using bumper;
2.Fully automatic control system is easy for remote and side-by-side control;
3.Hydraulic lubrication oil station with small volume and simple wiring;Discharge opening is adjusted by hydraulic cylinder;
4.The dust collector is sealed with dry oil. Reliable structure and low failure rate.

Working Principle

The working principle of hydraulic cone crusher is similar to the traditional cone crusher. It consists of a conical crushing cavity and a rotating crushing head. The material enters the crushing chamber from the feed port, and is compressed, broken and refined under the action of the crushing head. The material particles in the crushing chamber will gradually become smaller and eventually meet the required crushing requirements.

Service Guarantee

Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
Expert design as your order and requirement, with all-around solutions to your problems.
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
Regular inspection and return visit, and solve your after-sale problems in time.

Technical Parameter

Model	Cavities	Broken cone big end diameter（mm）	Feeding Size（mm）	Max.feeding Size（mm）	Adjusting Range of Discharge Opening（mm）	Processing capacity（t/h）	Power（kw）
GYS 300	C1	910	175	140	13-38	81-180	90
	C2		102	80	9-22	60-180
	F1		76	60	3-16	36-145
	F2		41	30	3-13	36-130
GYS 400	C1	1300	241	190	19-51	207-400	200
	C2		210	168	16-38	162-350
	C3		137	110	13-31	126-310
	F1		105	85	8-25	109-230
	F2		89	70	6-16	82-230
	F3		64	50	3-16	40-230
GYS 500	C1	1600	269	215	25-64	280-650	280
	C2		241	190	22-51	258-450
	C3		209	170	16-38	180-410
	F1		133	105	10-25	162-355
	F2		89	70	6-19	136-330
	F3		70	55	5-13	90-300

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Cavities	Max.feeding Size（mm）	Processing capacity（t/h）
GYS 300	C1	140	81-180
	C2	80	60-180
	F1	60	36-145
	F2	30	36-130
GYS 400	C1	190	207-400
	C2	168	162-350
	C3	110	126-310
	F1	85	109-230
	F2	70	82-230
	F3	50	40-230
GYS 500	C1	215	280-650
	C2	190	258-450
	C3	170	180-410
	F1	105	162-355
	F2	70	136-330
	F3	55	90-300
