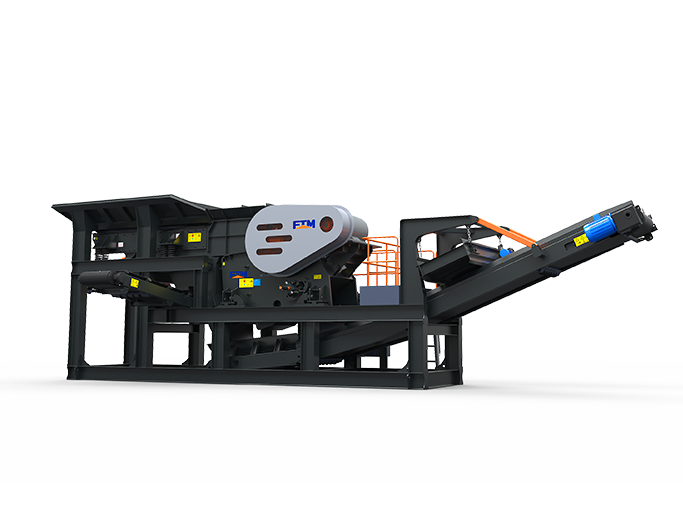

KJ Series Modular Crushing Station

Raw materials processing: --- stone, river pebble, limestone, granite, basalt, diabase, andesite, ore tailings.

Are you interested in our machines?

Chat Online Free Quotation

50-500t/h Processing capacity

≤600mm Feeding Size

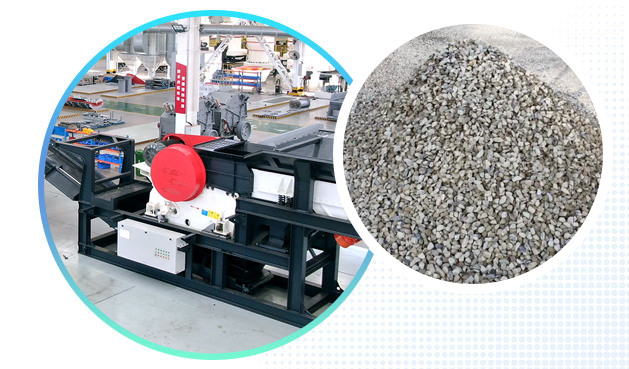

Brief Introduction

A KJ Series Modular Crushing Station is a mobile device for handling and crushing construction waste, ore or other materials. It usually consists of one or more crushers, feeders, vibrating screens, conveyor belts and control systems. The main function of the mobile crushing module station is to crush, screen and separate the original materials for subsequent processing or reuse. It can be used at construction sites, mining sites or other places where large quantities of materials need to be processed.

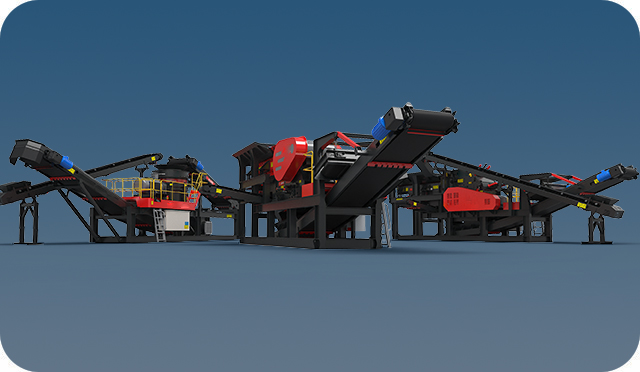

Working Principle

KJ series module crushing station is a mobile module crushing station developed by FOTE Machinery according to the current market situation. The equipment has a high degree of integration. After simple lifting, it can be quickly put into production, and the on-site installation is convenient and fast. Compared with the decentralized working environment of the fixed production line, the modular and integrated design makes the equipment layout more flexible and the site more concise and reasonable.

Service Guarantee

Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
Expert design as your order and requirement, with all-around solutions to your problems.
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
Regular inspection and return visit, and solve your after-sale problems in time.

Technical Parameter

Series	Standard Model	On board equipment	On board equipment	Processing Capability (t/h)	Transport dimensions (mm)
JAW CRUSHER	KJ98	GZDT9538	HDX98	90-350	12750×3020×3850
JAW CRUSHER	KJ110	GZDT1145B	HDX110	120-450	13050×3050×4000
IMPACT CRUSHING PLANT	KJ1213	GZDT9538	C11213	80-320	12970×3020×3920
IMPACT CRUSHING PLANT	KJ1316	GZDT1145B	C11316	100-400	13290×3050×4080
CONE CRUSHING STATION	KJ300	-	HPM300C1	60-280	15650×3270×3780
CONE CRUSHING STATION	KJ250	-	SC250F1	90-350	15600×32700×3800
SAND MAKING STATION	KJ0926	-	HVI0926	85-240	15400×2770×3780
SAND MAKING STATION	KJ1040	-	HVI1040	120-284	15400×2920×3970
SCREENING STATION	KJ1865S-3	-	3HX1865	65-350	15200×2900×3000
SCREENING STATION	KJ2165S-4	-	4HX2165	85-500	15200×2900×3200

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Series	Standard Model	Processing Capability (t/h)	Transport dimensions (mm)
JAW CRUSHER	KJ98	90-350	12750×3020×3850
JAW CRUSHER	KJ110	120-450	13050×3050×4000
IMPACT CRUSHING PLANT	C11213	80-320	12970×3020×3920
IMPACT CRUSHING PLANT	KJ1316	100-400	13290×3050×4080
CONE CRUSHING STATION	KJ300	60-280	15650×3270×3780
CONE CRUSHING STATION	KJ250	90-350	15600×32700×3800
SAND MAKING STATION	KJ0926	85-240	15400×2770×3780
SAND MAKING STATION	KJ1040	120-284	15400×2920×3970
SCREENING STATION	KJ1865S-3	65-350	15200×2900×3000
SCREENING STATION	KJ2165S-4	85-500	15200×2900×3200
