Applied material: --- limestone, gypsum, calcium carbonate, etc.
Applied fields: --- used for primary, secondary and fine crushing of limestones. After being crushed, limestone with different particle size can be used in cement plant, road, construction, chemical, garden, etc.
10-50t/h Production Capacity:
≤210mm Input Size:

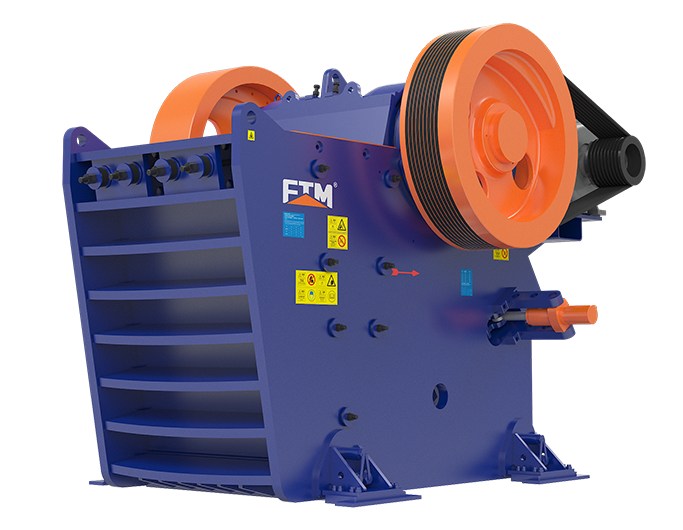

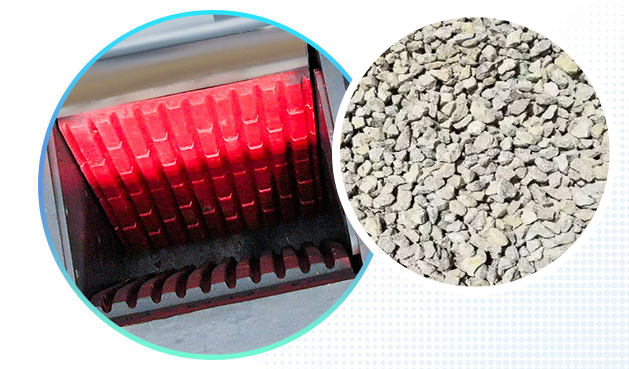

Limestone crusher is used for primary, secondary and fine crushing of limestones. After being crushed, limestone with different particle size can be used in cement plant, road, construction, chemical, garden, etc.

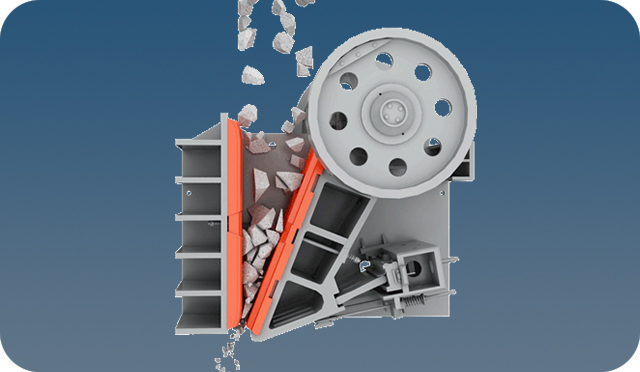

The motor drives the belt and pulley, and the movable jaw moves up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, thereby pushing the movable jaw approaches the fixed jaw, and at the same time, the material is crushed to achieve the purpose of crushing; when the movable jaw descends, the angle between the toggle and the movable jaw becomes smaller. Under the role of pull rod and the spring, the movable jaw leaves the fixed jaw, the crushed materials are discharged from the lower mouth of the crushing cavity. With the continuous rotation of motor and the periodic motion of movable jaw, realizing mass production.
| Model | Feed opening size(mm） | Max.Feeding size (mm) | Adjustment range of discharge port (mm) | Capacity(t/h) | Rotation speed of eccentric shaft(r/min) | Power (kw) | Dimensions（L×W×H） (mm) |
| PE 150×250 | 150×250 | 125 | 10-40 | 1-3 | 268 | 4P 5.5 | 760×700×860 |
| PE 200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 4P 7.5 | 915×780×990 |
| PE 200×350 | 200×350 | 180 | 18-60 | 3-10 | 276 | 4P 11 | 1000×914×1112 |
| PE 250×400 | 250×400 | 210 | 20-70 | 5-21 | 300 | 6P 15 | 1100×1032×1285 |
| PE 400×600 | 400×600 | 340 | 40-100 | 16-64 | 270 | 6P 30 | 1623×1736×1615 |
| PE 500×750 | 500×750 | 425 | 50-100 | 40-110 | 268 | 6P 55 | 1920×1850×1920 |
| PE 600×750 | 600×750 | 500 | 150-200 | 80-240 | 268 | 6P 55 | 2020×1850×1920 |
| PE 600×900 | 600×900 | 500 | 65-160 | 50-160 | 254 | 6P 55 | 2530×1900×2340 |
| PE 750×1060 | 750×1060 | 630 | 80-180 | 110-320 | 245 | 8P 110 | 2680×2380×2785 |
| PE 900×1200 | 900×1200 | 750 | 100-200 | 220-380 | 208 | 8P 110 | 3470×2876×3330 |
| PE1200×1500 | 1200×1500 | 1020 | 150-350 | 400-1000 | 180 | 8P 160-245 | 4850×3220×3680 |
| PE1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1200 | 180 | 8P 280-380 | 5160×3660×4248 |
| PEX 150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 1170×1575×1030 |
| PEX 250×750 | 250×750 | 210 | 25-60 | 13-35 | 320 | 6P 22 | 1550×1730×1470 |
| PEX 250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 1580×2006×1390 |
| PEX 250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 1780×2214×1430 |
| PEX 300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 2210×2320×1723 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Max.Feeding size (mm) | Capacity (t/h) |
| PE 150×250 | 125 | 1-3 |
| PE 200×300 | 180 | 2-6 |
| PE 200×350 | 180 | 3-10 |
| PE 250×400 | 210 | 5-21 |
| PE 400×600 | 340 | 16-64 |
| PE 500×750 | 425 | 40-110 |
| PE 600×750 | 500 | 80-240 |
| PE 600×900 | 500 | 50-160 |
| PE 750×1060 | 630 | 110-320 |
| PE 900×1200 | 750 | 220-380 |
| PE 1200×1500 | 1020 | 400-1000 |
| PE 1500×1800 | 1200 | 500-1200 |
| PEX 150×750 | 120 | 8-25 |
| PEX 250×750 | 210 | 13-35 |
| PEX 250×1000 | 210 | 16-52 |
| PEX 250×1200 | 210 | 20-61 |
| PEX 300×1300 | 250 | 16-105 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
