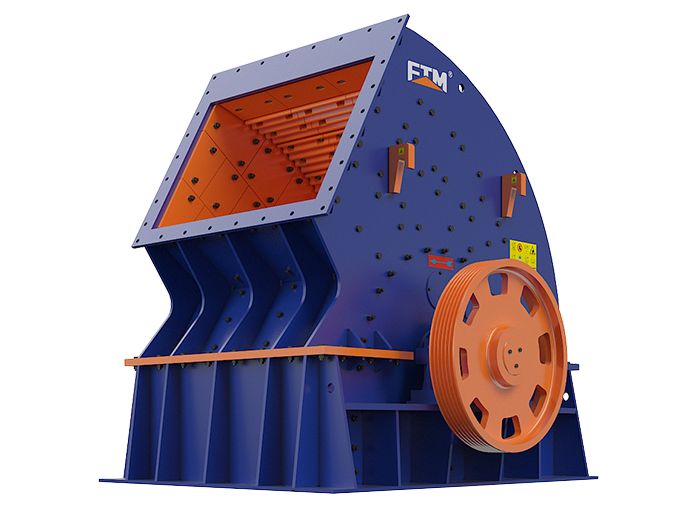

PCZ Heavy Hammer Crusher

Raw Materials Processing: --- For crushing brittle materials with medium hardness and below, gypsum, brick, limestone, coal, glass and so on.

Are you interested in our machines?

Chat Online Free Quotation

100-3200t/h Capacity:

≤600–≤1700 mm Feeding size:

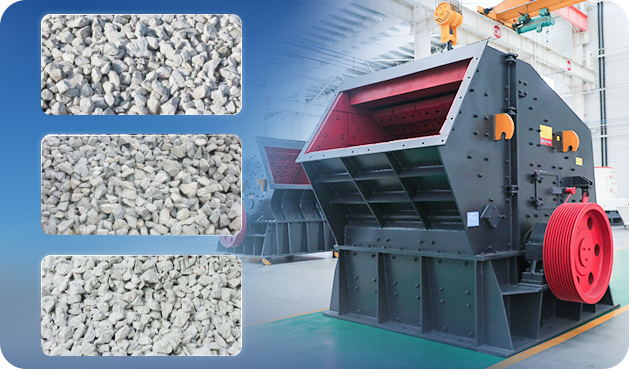

Brief Introduction

The PCZ Heavy Hammer Crusher can crush the stone in once time without secondary crushing, which can reduce the cost by about 40%, and have low energy consumption and low investment. It is widely used in many industries such as mining, smelting, building materials, road, railway, water conservancy and chemical industry. What’s more, it is especially suitable for crushing limestone and stone with a compressive strength of less than 200 Mpa.

Advantages

Cost-saving & Energy-saving

The crusher shapes material up by single crushing without second time to reduce the cost by around 40%, which ensures energy and investment saving.
Wide Range of the Stone Application

It is especially applicable for crushing limestone and medium hardness stones less than 200Mpa.
High Degree of Automation

It uses an external oil pump, fuel tank, and line lubrication system. When the oil temperature is too high or the flow rate is too slow, it will automatically stop.
Multi-purpose Machine

Thanks to the modular design, coarse, medium and fine crushing can be achieved by changing the cavity shape to improve production efficiency.

Working Principle

The PCZ Heavy Hammer Crushers are available in various specifications with coarse, medium and fine crushing. The finished products can be adjusted according to customer needs. It is especially suitable for large-scale engineering materials such as highways and buildings. This machine removes the primary crushing process of the jaw crusher and becomes a new type of crushing machine completing the crushing work at once for large and small materials. The output is large, the efficiency is high, the power is small, the manpower and material resources are saved, and the crushing cost of the material is reduced. The crushed stone of this machine is not only full-scale, but also uniform and clear. It is an alternative to the old jaw crusher and the hammer crusher.

Service Guarantee

Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
Expert design as your order and requirement, with all-around solutions to your problems.
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
Regular inspection and return visit, and solve your after-sale problems in time.

Technical Parameter

Model	Rotor diameter×length (mm)	Feed Opening Length×width(mm)	Feeding Size (mm)	Processing Capacity(t/h)	Power (kw)	Dimensions L×W×H (mm)
PCZ1308	Φ1330×790	870×780	≤380	60-160	132	2880×2130×2390
PCZ1410	Φ1400×1000	1060×740	≤450	80-210	2×90(160)	2830×2100×2485
PCZ1610	Φ1600×1000	1090×930	≤480	100-230	2×132	3370×2415×2750
PCZ1612	Φ1600×1200	1340×1140	≤500	120-350	2×160	3370×2613×2750
PCZ1615	Φ1600×1500	1570×1140	≤550	200-550	2×200	3370×2925×2750
PCZ1716	Φ1700×1600	1420×1200	≤600	400-850	2×250	3520×3000×3210
PCZ1720	Φ1700×2000	2030×1200	≤650	500-1000	2×400	3670×3390×3330
PCZ1920	Φ1900×2000	1980×1210	≤750	800-1500	2×500	4490×3910×3600
PCZ2225	Φ2200×2500	2530×1610	≤1000	1500-3000	1250	4890×5010×4560

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Feeding Size (mm)	Processing Capacity(t/h)
PCZ1308	≤380	60-160
PCZ1410	≤450	80-210
PCZ1610	≤480	100-230
PCZ1612	≤500	120-350
PCZ1615	≤550	200-550
PCZ1716	≤600	400-850
PCZ1720	≤650	500-1000
PCZ1920	≤750	800-1500
PCZ2225	≤1000	1500-3000
