Raw Materials Processing: --- All kinds of limestone, pebbles, dolomite, marble, iron ore, granite, basalt, etc.
Raw Materials Processing: --- All kinds of limestone, pebbles, dolomite, marble, iron ore, granite, basalt, etc.
30-220t/h Capacity:
400x600-300x1300mm Feed opening:

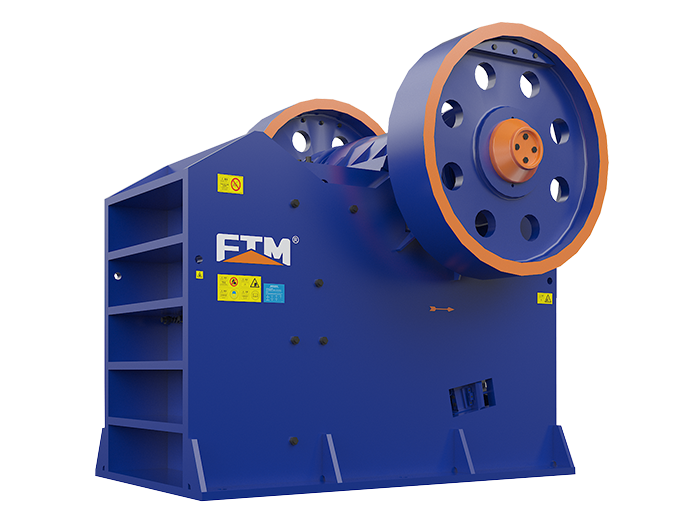

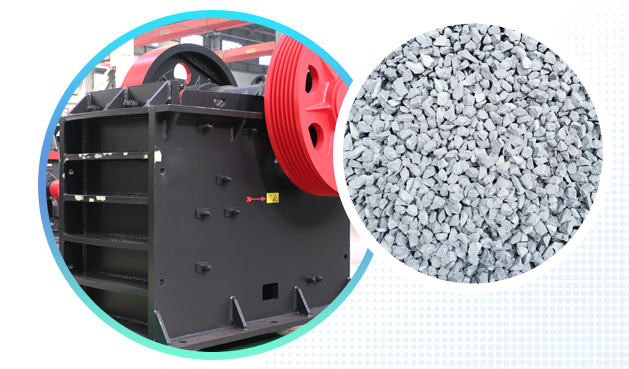

The hydraulic jaw crusher is a double-cylinder hydraulic compound pendulum jaw crusher developed on the basis of jaw crusher. The whole machine adopts full hydraulic operation and is mainly composed of three parts: main engine, hydraulic protection device and electric control cabinet. The crusher has overload protection function, and can crush materials with extremely strong and extremely hard foreign materials, which has large and stable processing capacity and high safety. It is widely used in sand and gravel yards, mining and stone crushing plant, concrete mixing stations and other fields.
The hydraulic jaw crusher has overload protection function, which effectively solves the problem of blockage in steel slag crushing, and can realize non-stop production.
The size range of the discharge port can be adjusted, and the deep V cavity type design can increase feeding amount and enhance the crushing capacity.
With precision-machined parts and sealed broken space, the equipment has long service life and reduces dust flying out.
The equipment is designed with new technology, and the structure is more compact and simple, which simplifies the operation process, reduces the workload of the field workers, and is more convenient to install. The hydraulic system enhances the crushing automation ability and makes the stone crushing easier. The hydraulic jaw crusher has the advantages of simple structural design, low operating cost and convenient maintenance.
| Model | PEY-400x600 | PEY-500x750 | PEY-600x900 | PEY-750x1060 |
PEY-300x1300 |
| Size of feeding port(mm) | 400x600 | 500x750 | 600x900 | 750x1060 | 300x1300 |
| Max. Feeding size (mm) | 340 | 425 | 500 | 630 | 250 |
| Discharging size(mm) | 40～90 | 35～100 | 75～125 | 80～150 | 20～100 |
| Eccentric shaft speed | 30 | 255 | 250 | 255 | |
| Handling capacity(t/h) | 30～65 | 50～120 | 80～200 | 120～220 | 40～100 |
| Power of main motor(KW) | 30 | 55 | 75 | 110 | 75 |
| Hydraulic cylinder | working pressure：5-7MPa ylinder diameter：Φ250mm Piston stroke：160mm |
working pressure：5-8MPa ylinder diameter：Φ320mm Piston stroke：200mm |
working pressure：11MPa ylinder diameter：Φ400mm Piston stroke：320mm |
working pressure：5-8MPa ylinder diameter：Φ320mm Piston stroke：200mm |
|
| Dimensions (L x W x H) | 3030x1350x1600 | 3300x1900x2100 | 3955x3360x2398 | 4980x2500x3100 | 4050x3420x1850 |
| Weight(kg) | 9480 | 16200 | 23400 | 37800 | 18200 |
| Model | Max. Feeding size （mm） | Handling capacity(t/h) |
| PEY-400x600 | 340 | 30～65 |
| PEY-500x750 | 425 | 50～120 |
| PEY-600x900 | 500 | 80～200 |
| PEY-750x1060 | 630 | 120～220 |
| PEY-300x1300 | 250 | 40～100 |
