Raw Materials Processing: --- Stone, cheap and easily available tailings, waste, construction waste, stone chips, and so on.
Raw Materials Processing: --- Stone, cheap and easily available tailings, waste, construction waste, stone chips, and so on.
60-300t/h Processing capacity:
0-15mm Feeding Size:

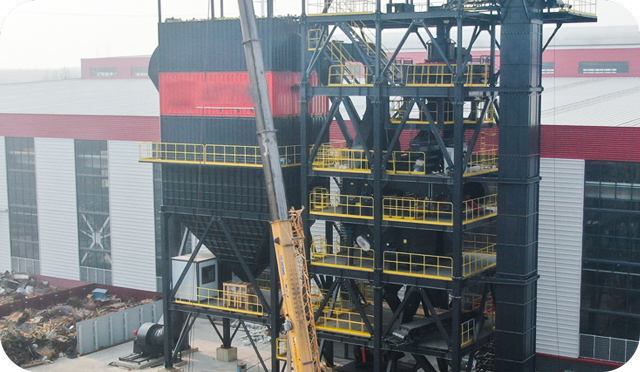

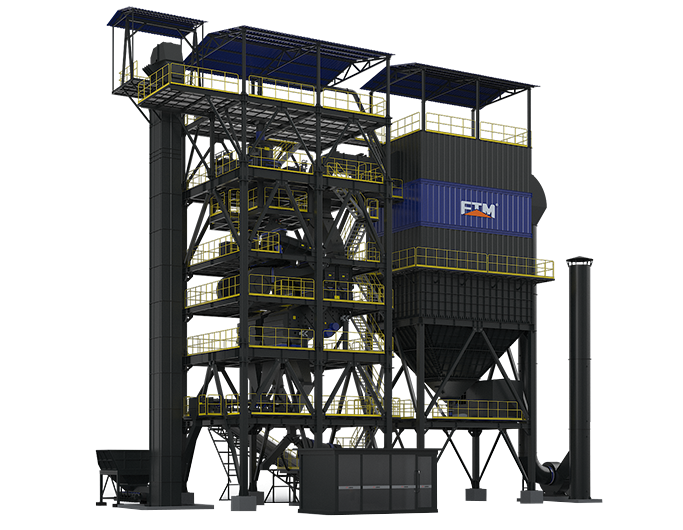

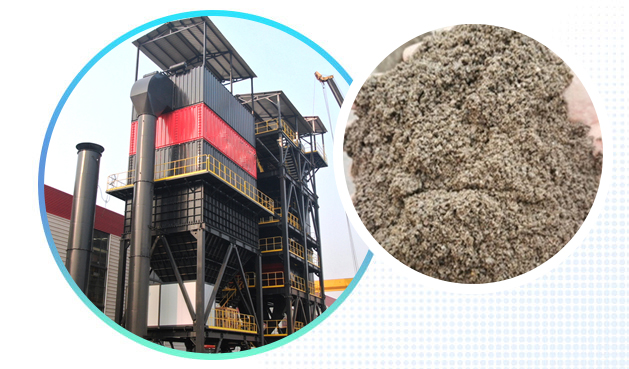

S7 Dry Process Premium Sand Making Tower is based on our company's digestion and absorption of the international advanced dry sand making concept, in order to meet the high reliability and high performance requirements of customers such as high-quality sand and gravel quarries, cement plants, mixing plants, etc. The most advanced crushing, screening, dust removal, powder selection and intelligent control technology, complete sets of equipment developed and produced. It is widely used in mining, building materials, transportation, energy, chemical and other industries.
It adopts a highly intensive tower-type fully enclosed arrangement, integrating sand making, grain type optimization, stone powder control, gradation adjustment, water content control, and environmental protection treatment. It can effectively improve the particle shape of finished sand and increase the proportion of finished sand. It combines air separation, vibration screening and sedimentation technology to achieve effective separation of stone, sand and powder. Through intelligent control, the grain shape, particle size and gradation of finished sand are excellent. Help customers reduce costs and improve production efficiency. It has created new opportunities for the development of sand and gravel, commercial mixing and other industries.
| Model | Input size（mm） | Capacity（t/h） | Power（KW） | Overall dimension L×W×H （M） |
| S7-60 | 0-15 | 60 | 490 | 26×6×25 |
| S7-100 | 0-15 | 100 | 750 | 30×9×27 |
| S7-150 | 0-15 | 150 | 1000 | 30×9×30 |
| S7-200 | 0-15 | 200 | 1200 | 30×12×30 |
| S7-300 | 0-15 | 300 | 2000 | 30×20×30 |
| S7-600 | 0-15 | 600 | 4000 | 30×40×30 |
Raw material moisture content: mud content of feeding <1%, water content <2%
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Input size（mm） | Capacity（t/h） | Power（KW） |
| S7-60 | 0-15 | 60 | 490 |
| S7-100 | 0-15 | 100 | 750 |
| S7-150 | 0-15 | 150 | 1000 |
| S7-200 | 0-15 | 200 | 1200 |
| S7-300 | 0-15 | 300 | 2000 |
| S7-600 | 0-15 | 600 | 4000 |
Raw material moisture content: mud content of feeding <1%, water content <2%
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
